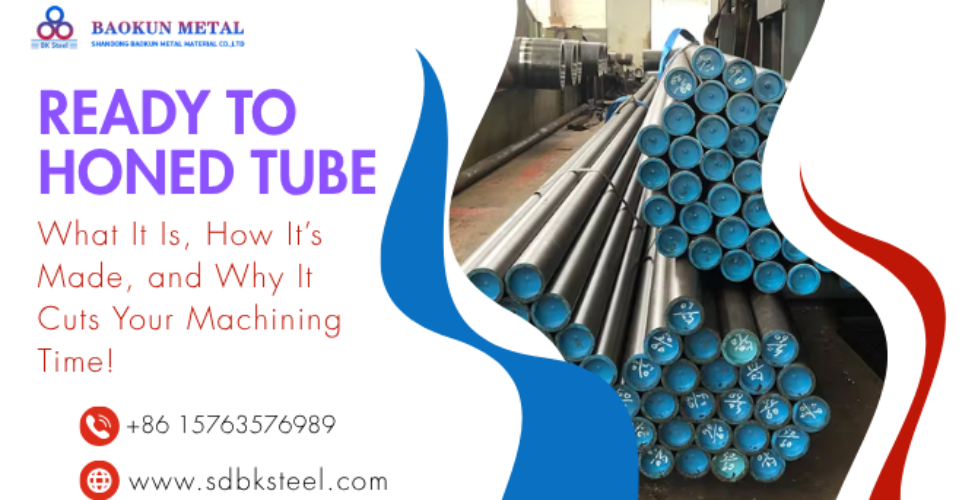

Ready to Honed Tube: What It Is, How It’s Made, and Why It Cuts Your Machining Time!
In today’s fast-paced manufacturing environment, efficiency and precision are more important than ever. Engineers and procurement specialists are constantly seeking ways to streamline production, reduce costs, and maintain the highest quality standards. One innovation that has significantly impacted the hydraulic and pneumatic cylinder industry is the Ready to Honed Tube.
What is a Ready to Honed Tube?
A Ready to Honed Tube is a precision steel tube that has been cold drawn and normalized, with tight dimensional tolerances and a smooth internal surface finish. As the name suggests, it is “ready” for the final honing process, which means it requires minimal additional machining before being used in hydraulic or pneumatic cylinders.
Key Characteristics
- Tight Dimensional Tolerances: Ensures consistent wall thickness and roundness.
- Smooth Internal Surface: Reduces the amount of honing required.
- High Mechanical Strength: Suitable for high-pressure applications.
- Excellent Straightness: Facilitates easy assembly and reliable performance.
Why is it Called “Ready to Honed”?
The term “Ready to Honed” refers to the tube’s condition upon delivery. Unlike standard tubes, which may require extensive machining to achieve the desired surface finish and dimensional accuracy, Ready to Honed Tubes are manufactured to be as close as possible to the final specifications. This means that only a light honing pass is needed to achieve the perfect finish, saving both time and resources.
The Manufacturing Process of Ready to Honed Tube
Understanding how a Ready to Honed Tube is made is crucial for appreciating its benefits. The manufacturing process involves several precise steps, each designed to ensure the highest quality and performance.
- Raw Material Selection
The process begins with the selection of high-quality steel billets or seamless tubes. The choice of material is critical, as it determines the tube’s mechanical properties, machinability, and resistance to wear and corrosion. - Cold Drawing
The selected steel is cold drawn through a die to achieve the desired outer diameter and wall thickness. Cold drawing not only improves dimensional accuracy but also enhances the tube’s mechanical strength and surface finish. - Normalizing
After cold drawing, the tube is normalized—a heat treatment process that refines the grain structure, relieves internal stresses, and improves toughness. This step is essential for ensuring uniform mechanical properties throughout the tube. - Straightening
The tube is then straightened using precision equipment. Excellent straightness is vital for hydraulic and pneumatic applications, as it ensures smooth piston movement and reduces wear on seals. - Internal Surface Preparation
The internal surface of the tube is carefully prepared to achieve a smooth finish. This may involve processes such as skiving or light honing, depending on the required surface roughness. - Inspection and Quality Control
Every Ready to Honed Tube undergoes rigorous inspection and testing. Dimensional checks, surface roughness measurements, and non-destructive testing (such as ultrasonic or eddy current testing) are performed to ensure compliance with industry standards. - Packaging and Delivery
Finally, the tubes are cleaned, capped, and securely packaged to prevent damage during transportation. At Shandong Baokun Metal Material Co. Ltd, we ensure that every Ready to Honed Tube arrives at your facility in perfect condition, ready for the final honing process.
Advantages of Using Ready to Honed Tube
The popularity of Ready to Honed Tube is no accident. It offers a range of benefits that make it an attractive choice for manufacturers and engineers alike.
- Reduced Machining Time
Perhaps the most significant advantage is the dramatic reduction in machining time. Since the tube is already close to the final dimensions and surface finish, only minimal honing is required. This not only speeds up production but also reduces labor and energy costs. - Consistent Quality
Ready to Honed Tubes are manufactured under strict quality control, ensuring consistent dimensions and surface finishes from batch to batch. This consistency translates into reliable performance and fewer rejects during assembly. - Improved Surface Finish
A smoother internal surface reduces friction and wear on pistons and seals, extending the life of hydraulic and pneumatic cylinders. It also improves the efficiency of the system by minimizing energy losses. - Enhanced Mechanical Properties
The cold drawing and normalizing processes impart superior mechanical properties to the tube, making it suitable for high-pressure and high-stress applications. - Cost Savings
By reducing the amount of machining required, Ready to Honed Tube helps lower overall production costs. It also minimizes material waste and tool wear, further contributing to cost efficiency. - Faster Turnaround
With less time spent on machining and finishing, manufacturers can achieve faster turnaround times, meeting tight project deadlines and improving customer satisfaction.
Applications of Ready to Honed Tube
Ready to Honed Tube is used in a wide range of industries and applications, thanks to its versatility and performance characteristics.
- Hydraulic Cylinders
The most common application is in the manufacture of hydraulic cylinders, where precise dimensions and smooth internal surfaces are critical for efficient operation. - Pneumatic Cylinders
Similarly, pneumatic cylinders benefit from the high-quality finish and dimensional accuracy of Ready to Honed Tube, ensuring smooth and reliable movement. - Automotive Industry
In the automotive sector, Ready to Honed Tubes are used in shock absorbers, steering systems, and other components that require precision and durability. - Construction and Mining Equipment
Heavy-duty machinery relies on robust hydraulic and pneumatic systems, making Ready to Honed Tube an essential component in construction and mining equipment. - Industrial Machinery
From presses to injection molding machines, any equipment that uses hydraulic or pneumatic actuators can benefit from the use of Ready to Honed Tube.
How Ready to Honed Tube Cuts Your Machining Time?
One of the main selling points of Ready to Honed Tube is its ability to significantly reduce machining time. But how exactly does it achieve this?
- Near-Final Dimensions
Ready to Honed Tubes are manufactured to tight tolerances, meaning they are already very close to the final required dimensions. This eliminates the need for extensive boring or turning operations. - Pre-Prepared Surface
The internal surface is already smooth and uniform, requiring only a light honing pass to achieve the desired finish. This is in stark contrast to standard tubes, which may require multiple passes and significant material removal. - Reduced Tool Wear
Because less material needs to be removed, cutting tools experience less wear and tear. This not only extends tool life but also reduces the frequency of tool changes and maintenance. - Lower Energy Consumption
Less machining means lower energy consumption, contributing to a more sustainable and cost-effective manufacturing process. - Streamlined Workflow
With Ready to Honed Tube, the workflow is simplified. Tubes can move quickly from delivery to final honing and assembly, reducing bottlenecks and improving overall productivity.
Quality Standards and Certifications
When it comes to hydraulic and pneumatic applications, quality is non-negotiable. Ready to Honed Tubes from Shandong Baokun Metal Material Co. Ltd. are manufactured in accordance with international standards such as:
- DIN 2391
- EN 10305-1/2
- ASTM A519
Each tube is accompanied by material certificates and test reports, ensuring full traceability and compliance with customer requirements.
Customization Options
Every application is unique, and at Shandong Baokun Metal Material Co. Ltd, we understand the importance of flexibility. We offer a wide range of customization options for Ready to Honed Tube, including:
- Custom Dimensions: Outer diameter, inner diameter, and wall thickness.
- Material Grades: Carbon steel, alloy steel, and stainless steel.
- Surface Treatments: Phosphating, chrome plating, and more.
- Cut-to-Length Services: Tubes can be supplied in standard or custom lengths.
Our technical team works closely with customers to ensure that every Ready to Honed Tube meets their exact specifications.
Best Practices for Handling and Storage
To maintain the quality of Ready to Honed Tube, proper handling and storage are essential.
1.Handling
- Use appropriate lifting equipment to avoid bending or damaging the tubes.
- Avoid dropping or striking the tubes, as this can cause dents or surface defects.
2.Storage
- Store tubes in a clean, dry environment to prevent corrosion.
- Use protective caps on tube ends to keep out dust and debris.
- Stack tubes on wooden supports or racks to prevent direct contact with the ground.
By following these best practices, you can ensure that your Ready to Honed Tube remains in optimal condition until it is ready for use.
Why Choose Shandong Baokun Metal Material Co. Ltd for Ready to Honed Tube?
Selecting the right supplier is just as important as choosing the right product. Here’s why Shandong Baokun Metal Material Co. Ltd is the preferred choice for Ready to Honed Tube:
- Expertise: Years of experience in manufacturing precision steel tubes.
- Quality Assurance: Rigorous inspection and testing at every stage of production.
- Customization: Flexible solutions tailored to your specific needs.
- Reliable Delivery: Efficient logistics ensure timely delivery worldwide.
- Technical Support: Our team of experts is always available to provide guidance and support.
When you choose us, you’re not just buying a product—you’re gaining a partner committed to your success.?
The Ready to Honed Tube represents a significant advancement in the field of hydraulic and pneumatic cylinder manufacturing. By delivering tubes that are already close to the final required dimensions and surface finish, it enables manufacturers to cut machining time, reduce costs, and improve product quality.
Frequently Asked Questions (FAQ)
Q1: What is the difference between Ready to Honed Tube and standard seamless tube?
A: Ready to Honed Tube is manufactured to tighter tolerances and has a smoother internal surface compared to standard seamless tubes. It is specifically designed to require minimal additional machining before use in hydraulic or pneumatic cylinders, saving time and costs.
Q2: Can Ready to Honed Tube be used directly in cylinder manufacturing?
A: Yes, Ready to Honed Tube is designed to be as close as possible to the final specifications. Only a light honing pass is typically required before assembly, making it ideal for cylinder manufacturing.
Q3: What materials are available for Ready to Honed Tube?
A: Common materials include carbon steel (such as ST52, E355), alloy steel, and stainless steel. The choice depends on the application’s pressure, strength, and corrosion resistance requirements.
Q4: How does Ready to Honed Tube improve production efficiency?
A: By reducing the amount of machining required, Ready to Honed Tube shortens production cycles, lowers labor and energy costs, and minimizes tool wear, resulting in higher efficiency and cost savings.
Q5: What surface finish can be expected from Ready to Honed Tube?
A: The internal surface finish is typically Ra ≤ 0.8 μm, which is suitable for most hydraulic and pneumatic applications. Final honing can achieve even smoother finishes if required.
Q6: Are there size limitations for Ready to Honed Tube?
A: At Shandong Baokun Metal Material Co. Ltd, we offer a wide range of sizes and can accommodate custom dimensions to meet specific project requirements.
Q7: How are Ready to Honed Tubes packaged for delivery?
A: Tubes are cleaned, capped, and securely packaged in wooden crates or bundles to prevent damage during transportation. Special packaging can be arranged upon request.
Q8: What quality standards do Ready to Honed Tubes meet?
A: Our Ready to Honed Tubes comply with international standards such as DIN 2391, EN 10305, and ASTM A519. Material certificates and test reports are provided with every shipment.
Q9: Can Ready to Honed Tube be supplied with additional surface treatments?
A: Yes, we offer various surface treatments, including phosphating, chrome plating, and painting, to enhance corrosion resistance and appearance.
Q10: How can I get a quote or technical support for Ready to Honed Tube?
A: Simply contact our sales or technical team at Shandong Baokun Metal Material Co. Ltd. We are always ready to provide detailed quotations, technical advice, and support for your projects.
