Manual Tailstocks

In the realm of machining, precision and stability are paramount. A manual tailstock serves as a critical component in lathes and other machinery, enhancing operational efficiency and ensuring high-quality results. For any machine shop aiming for optimal performance, incorporating a manual tailstock is not just beneficial—it is essential.

What is a Manual Tailstock?

A manual tailstock is positioned opposite the headstock in a lathe, providing crucial support for workpieces during machining operations. Its primary role is to stabilize the non-driven end of the workpiece, especially for longer or cylindrical parts, ensuring they remain centered and secure throughout various processes such as turning, drilling, and tapping.

Enhanced Precision and Stability

One of the most significant benefits of a manual tailstock is the additional support it offers, which translates directly into increased precision. When machining longer or slender components, the tailstock minimizes the risk of bending or deflection, ensuring that the workpiece maintains its shape as it rotates. This stability is crucial for producing parts with tight tolerances and high accuracy.

Flexible Support for Different Workpieces

Manual tailstocks are designed to accommodate various workpiece sizes, making them versatile tools in any machine shop. They can be easily adjusted along the length of the lathe, providing flexibility for operators. This adaptability ensures that whether you are machining small components or longer materials, the tailstock can offer the necessary support and alignment.

Also Read: Key Features of Manual Tailstock

Improved Alignment and Centering

The manual tailstock often holds live centers or dead centers that help maintain the alignment of the workpiece. This centering capability is vital for achieving accurate machining results. By ensuring the workpiece remains correctly aligned, machine shops can significantly reduce errors and improve overall quality.

Facilitating Critical Operations

The manual tailstock is not only essential for support but also plays a vital role in facilitating various machining operations. It serves as a stabilizing force when drilling, reaming, or tapping, ensuring that tools are aligned correctly with the workpiece. This alignment reduces tool wear and allows for cleaner cuts, ultimately enhancing production quality.

Also Read: How does a Manual Tailstock work?

Cost-Effectiveness

Investing in a manual tailstock is a financially sound decision for machine shops. High-quality manual tailstocks, like those offered by SilverCNC, provide robust performance at competitive prices—often about half that of well-known brands. This affordability, combined with their reliability and durability, makes them a cost-effective option for businesses aiming to improve their machining capabilities.

Easy Installation and Maintenance

Another significant advantage of manual tailstocks is their easy installation and maintenance. Most models require minimal setup, allowing machine shops to integrate them quickly into existing systems. Additionally, their straightforward design means that maintenance needs are low, ensuring that operations can remain uninterrupted.

Conclusion

In summary, a manual tailstock is an indispensable tool for any machine shop aiming to enhance efficiency and precision in machining operations. With their ability to provide support, improve alignment, and facilitate various machining tasks, manual tailstocks are essential for producing high-quality components. If your machine shop is looking for dependable and cost-effective solutions, consider investing in a manual tailstock to elevate your machining capabilities. For more information, explore the manual tailstocks available at https://tinyurl.com/nhbac4yf or give me a call at +86 180 9892 0890 for a FREE QUOTE today!

When it comes to precision machining and metalworking operations, stability and alignment are everything. Whether you’re turning long shafts, boring heavy workpieces, or supporting cylindrical parts during a milling operation, having the right Manual Tailstock can mean the difference between a perfect part and a costly mistake. For machinists, shop managers, and production engineers, investing in a reliable Manual Tailstock isn’t just about equipment — it’s about performance, productivity, and long-term durability.

At SilverCNC, we’ve spent decades engineering and supplying the heavy-duty components that keep CNC and manual machining operations running smoothly. Among those, the Manual Tailstock plays a mission-critical role — especially in operations that require manual flexibility, quick setup times, and robust part support without the automation overhead of CNC-controlled tailstocks.

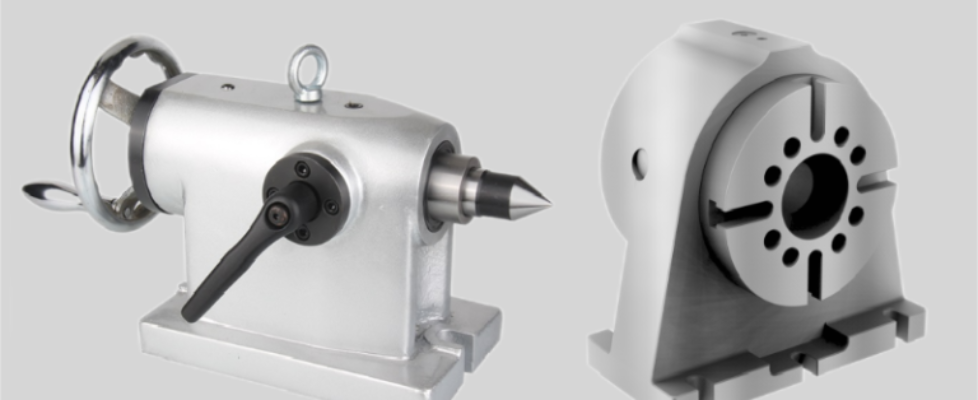

What Is a Manual Tailstock?

A Manual Tailstock is a mechanical device mounted opposite the headstock of a lathe or rotary table. It is used to support long or heavy workpieces during machining operations such as turning, boring, or facing. Unlike CNC-controlled tailstocks, a manual tailstock is adjusted manually by the operator using a handwheel or lever system.

It usually consists of:

• A robust base that slides or bolts onto the machine bed
• A spindle/quill that can be extended and retracted
• A locking mechanism to secure the spindle
• Set up features like height adjustment or alignment keys

Despite modern automations, manual tailstocks remain critical in many setups — particularly in job shops, prototyping environments, and rotary axis configurations where frequent repositioning is necessary.

Why Tailstock Selection Really Matters

Many manufacturers overlook the tailstock as a basic support tool. However, choosing the right one can directly impact:

• Machining accuracy
• Surface finish quality
• Tool life
• Part concentricity
• Workpiece integrity
• Operator safety

A poorly built or misaligned tailstock can introduce deflection or chatter, reducing your tolerances and possibly resulting in part rejection. On the other hand, a robust and properly selected manual tailstock allows for stable, consistent machining over long runs — saving time, money, and material.

Key Features to Look for in a High-Performance Manual Tailstock

A high-performance manual tailstock should offer robust construction, smooth and precise quill movement, and reliable locking mechanisms for stability. Key features include accurate alignment, adjustable positioning, durable materials, and ease of operation, all of which help improve machining accuracy, support workpieces effectively, and ensure consistent results in turning operations.

A. Rigid Construction

The housing must be solid enough to handle pressure from large or rotating parts without flexing. Cast iron or hardened steel housings help absorb vibration and resist wear.

B. Precise Quill Travel

Look for smooth, backlash-free movement with clearly marked graduations. This ensures accurate spindle extension and retraction, especially during repeated setups.

C. Morse Taper Spindles

These allow quick integration with standard centers, drills, or reamers. Tailstocks commonly come with MT2, MT3, or MT4 tapers, depending on the load size.

D. Locking Mechanism

A dependable locking system prevents unintentional movement. Both base locks (for positioning along the machine bed) and spindle locks (for securing the extension) should be easy to use and firm under pressure.

E. Adjustable Height & Alignment

Some applications need tailstocks with vertical or lateral adjustment. This is important for matching the center height of different rotary tables or custom fixtures.

F. Load Capacity

Tailstocks are rated by the maximum load they can support, either statically or during rotation. Align this with your expected workpiece sizes and spindle power.

Materials That Ensure Long-Term Durability

Not all tailstocks are built the same. At SilverCNC, our manual tailstocks are constructed from:

• High-grade ductile or gray cast iron for excellent vibration damping
• Precision-ground steel components for wear resistance
• Hardened quills and taps to handle long-term clamping stress

The combination of these materials results in a product designed to last thousands of continuous cycles — even in demanding shop environments.

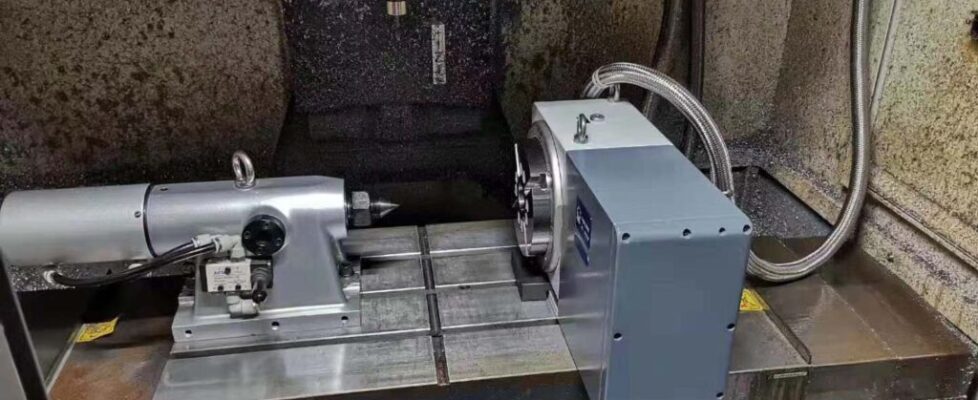

Tailstock Compatibility: Machine and Rotary Table Integration

It’s critical to ensure your manual tailstock is correctly matched to the:

• Rotary table size and center height
• Machine bed type (e.g., T-slot spacing)
• Index or gear system (for synchronized motion if needed)

SilverCNC offers customizable tailstocks designed to fit various 4th axis rotary tables and 5th axis rotary tables, with center heights ranging from 100mm to 200mm and beyond. We also provide solutions tailored to Haas, Fanuc, Siemens, and other system formats.

Common Mistakes to Avoid When Shopping for a Manual Tailstock

1. Ignoring compatibility with your machine’s center height
2. Underestimating load capacity for heavy or rotating parts
3. Choosing poor-quality materials that wear fast under pressure
4. Overlooking alignment options for conventional-to-custom setups
5. Skipping over travel distance measurements for spindle extension needs

Avoid these mistakes by working with knowledgeable vendors like SilverCNC, who can help you match your specs with the right tailstock model.

Maintenance and Operational Tips

To extend the life of a manual tailstock, follow these tips:

1. Clean regularly: Remove debris and coolant after each use
2. Lubricate spindle screw to reduce friction
3. Check alignment during multi-setup jobs
4. Inspect quill for wear and replace if necessary
5. Avoid overtightening locks, which leads to long-term deformation

SilverCNC tailstocks are designed for low-maintenance operation, but proactive care ensures peak performance year after year.

Equip with Confidence — Choose SilverCNC

The manual tailstock may be a simple piece of equipment, but its role in supporting accurate and stable machining cannot be overstated. Whether you’re manufacturing precision aerospace components, turning long shafts for automotive use, or simply need reliable support on your rotary table setup, choosing the right manual tailstock is essential to getting the best results.

By considering build quality, operational features, material durability, and compatibility, you not only protect your machine investment, but you also ensure every job runs smoother, cleaner, and more accurately.

FAQs

Q1: Can a manual tailstock work with both CNC and manual machines?

Yes! Manual tailstocks are highly versatile and can function with CNC rotary tables or traditional lathes as long as the center heights are compatible.

Q2: How do I choose the correct Morse taper size?

Match the taper to your center or tool. MT2 is common for smaller workloads; MT4 is ideal for heavy-duty setups.

Q3: Do manual tailstocks come assembled?

SilverCNC ships most models fully assembled and ready for installation, with instruction manuals included.

Q4: What is the usual lead time?

Standard models ship within 3–5 business days. Custom builds may take 1–3 weeks depending on scope.

Q5: Can I customize the tailstock height?

Absolutely. SilverCNC offers adjustable height bases or custom-built units to your specified dimensions.
