1045 Chrome Plated Rod

What Is 1045 Chrome Plated Rod? Complete Guide to Specs, Uses, and Benefits!

/ , , / , , / 0 Comments

In a world where the durability, precision, and quality of engineering materials are more crucial than ever, the 1045 Chrome Plated Rod has steadily earned a place as a staple across numerous industries. At Shandong Baokun Metal Material Co. Ltd, we understand that the right choice of raw material directly impacts the performance and lifespan of your machinery and projects. Therefore, it is essential to have a deep understanding of the products available to you. One such product—widely regarded for its optimal combination of strength, machinability, and corrosion resistance—is the 1045 chrome plated rod.

1. Understanding the Basics: What Is 1045 Chrome Plated Rod?

a) What is 1045 Steel?

1045 steel is a medium-carbon steel widely used due to its improved strength, hardenability, and machinability. It contains approximately 0.45% carbon, alongside varying amounts of manganese, phosphorus, and sulfur. This balanced composition grants it versatility across forging, machining, and heat treatment operations.

b) What Does “Chrome Plated” Mean?

A chrome plated rod is a rod that has been coated with a layer of chromium via an electroplating process. This finish not only enhances aesthetic appeal but, more importantly, provides substantial resistance to corrosion, abrasion, and surface wear.

c) What Is a 1045 Chrome Plated Rod?

Simply put, a 1045 chrome plated rod is a bar made from 1045 medium-carbon steel that has been precision ground and chrome plated to a defined thickness. The result is a product that offers both the strength of 1045 steel and the corrosion-resistant, wear-resistant properties of chromium plating.

Key Features at a Glance:

  • Core Material: 1045 medium-carbon steel
  • Surface Finish: Hard chrome plating (often to 20–30 microns or more)
  • Surface Hardness: 850-1150 HV (Vickers Hardness)
  • Straightness: High precision, typically ≤0.2mm/m
  • Applications: Hydraulic piston rods, guide rods, machine parts, shafts

2. Technical Specifications and Chemical Composition

To choose the right rod for your needs, understanding the typical specifications is crucial.

a) Physical Properties

  • Tensile Strength: 600-800 MPa
  • Yield Strength: 320 MPa minimum
  • Hardness (core): 170-230 HB
  • Elongation: Approx. 16%
  • Surface Hardness (Chrome): 850-1150 HV

b) Standard Dimensions and Tolerances

At Baokun Metal, our 1045 chrome plated rods are available in:

  • Diameter: 6mm to 300mm (custom sizes on request)
  • Length: Up to 8 meters (or customer specification)
  • Chrome Layer Thickness: 20–30µm (microns) standard (can be customized)
  • Straightness: ≤0.2mm per meter (industry standard)

c) Chrome Plating Specifications

  • Process: Hard chrome electroplating
  • Adhesion: Strong, durable bond with steel substrate
  • Finish: Mirror-like, low coefficient of friction

3. How Is 1045 Chrome Plated Rod Manufactured?

The process of producing a high-quality 1045 chrome plated rod involves several precise steps:

a) Material Selection & Preparation

  • Raw Material: 1045 carbon steel bars are selected for their balance of strength and machinability.
  • Rough Machining: Bars are cut and roughly machined to the desired dimensions.

b) Precision Grinding

Bars are precision-ground to achieve tight OD (Outside Diameter) tolerances and exceptional straightness—crucial for hydraulic and pneumatic applications.

c) Cleaning & Surface Preparation

Meticulous surface cleaning removes all contaminants, ensuring optimal chrome adhesion and finish quality.

d) Chrome Plating

High-quality chrome is electroplated onto the surface under controlled conditions to the required thickness (usually 20–30 microns or more).

e) Polishing

The rod is polished to achieve a mirror-like surface and low friction, which is vital for sealing in hydraulic systems.

f) Inspection & Quality Control

Each rod undergoes rigorous non-destructive testing (NDT), surface hardness tests, straightness verification, and chrome thickness checks.

4. Advantages and Benefits of 1045 Chrome Plated Rod

The 1045 chrome plated rod offers multiple compelling advantages:

a) Superior Wear Resistance

The hard chrome layer protects against abrasion, scuffing, and surface wear, dramatically extending service life—even in demanding applications.

b) Outstanding Corrosion Protection

The chrome finish shields the steel core from moisture and chemical attack, reducing rust and pitting. This is essential in outdoor or hydraulic environments.

c) Enhanced Surface Quality

A mirror-finished surface results in less friction, improved sealing, and less wear to mating components like seals and bushings.

d) High Strength Core

1045 steel delivers a robust, yet ductile, core structure able to handle shock loads and mechanical stresses better than lower-carbon steels.

e) Excellent Machinability

While very strong, 1045 steel is still readily machinable—ideal for custom cuts, threading, or end machining.

f) Cost-Effective Performance

Compared to higher alloy steels, 1045 chrome plated rods provide excellent performance at a competitive price point.

g) Versatility

Available in a wide range of diameters, lengths, and finishes, 1045 chrome plated rods are suitable for custom and standard applications alike.

5. Common Uses and Applications

Thanks to their unique properties, 1045 chrome plated rod is indispensable in many sectors:

a) Hydraulic and Pneumatic Cylinders

Perhaps the dominant use, as piston rods:

  • Excellent surface finish ensures smooth movement and seal longevity.
  • Chrome plating resists corrosion from hydraulic fluids.

b) Machinery Shafts and Guide Rods

  • Precision-ground for reduced vibration and increased machinery lifespan.
  • Common in automated assembly lines, industrial presses, and robotics.

c) Automotive and Truck Parts

  • Used in shock absorbers, steering components, and lifting mechanisms.

d) Construction Equipment

  • Found in hydraulic arms, lifters, cranes, jacks, and material handling gear.

e) Agricultural Machinery

Used for cylinders and shafts in harvesters, planters, and tractors requiring strong, corrosion-resistant parts.

f) Marine and Offshore

  • Chrome plating stands up to saltwater and harsh marine environments—ideal for ship machinery and offshore hydraulic systems.

g) Fitness Equipment

  • Benches and weightlifting machines benefit from the mirror finish and strength.

6. Selecting the Right 1045 Chrome Plated Rod

Choosing the optimal rod depends on your specific needs:

a) Application Requirements

  • Load Capacity: Heavier loads may require larger diameters.
  • Operating Environment: Chemical exposure or outdoor usage may need thicker chrome layers.
  • Length and Straightness: Critical for hydraulic cylinders and machinery automation.

b) Quality Standards

  • Ensure rods meet or exceed international quality standards (e.g., ASTM A108, GB/T 699-1999) and your project’s requirements.

c) Customization Options

At Shandong Baokun Metal Material Co. Ltd, we offer:

  • Custom diameters and lengths
  • Special chrome thickness
  • Machined ends, holes, or threads

d) Supplier Support

  • Partnering with a reliable supplier ensures consistent quality and professional technical support throughout your project lifecycle.

7. Care, Handling, and Maintenance

To maximize the lifespan of your chrome plated rods:

  • Store Indoors: Protect from moisture and impact.
  • Handle Carefully: Avoid nicks, scores, or scratches on the chrome surface.
  • Routine Inspection: Check for corrosion, wear, and straightness issues.
  • Clean Properly: Use non-abrasive cloths and approved cleaning agents.

8. Why Choose Shandong Baokun Metal Material Co. Ltd?

As an established leader in the steel materials industry, Shandong Baokun Metal Material Co. Ltd offers a comprehensive selection of high-performance 1045 chrome plated rods. Our commitment to quality ensures you benefit from:

  • Strict adherence to international standards
  • Advanced manufacturing and inspection processes
  • Competitive pricing and timely delivery
  • Expert technical support for your unique applications

Whether you need standard sizes or fully customized solutions, Baokun Metal is your partner for reliability, quality, and value.

1045 chrome plated rods represent a harmonious balance of strength, machinability, cost-effectiveness, and superior surface durability. Their unrivaled versatility and suitability for hydraulic, mechanical, and structural applications have made them a favorite the world over.

Frequently Asked Questions (FAQ)

Q1: How does 1045 chrome plated rod compare to 4140 chrome plated rod?

A1: The main difference is in the core material. 4140 is a chromium-molybdenum alloy steel with higher tensile strength, hardenability, and toughness than 1045. It’s preferred for ultra-high stress applications, while 1045 offers excellent performance and machinability at a lower cost for standard hydraulic and shafting needs.

Q2: What is the typical lead time for 1045 chrome plated rods from Shandong Baokun?

A2: For standard sizes, delivery can often be arranged within 7–15 days. Custom orders may require additional time depending on size and finish specifications.

Q3: Can 1045 chrome plated rods be welded or further machined?

A3: Yes, 1045 can be welded or machined. However, it is essential to remove the chrome plating from weld areas, and post-weld treatments may be required to restore corrosion resistance.

Q4: How thick is the chrome layer on chrome plated rods?

A4: The standard chrome layer thickness is 20–30 microns, though other thicknesses can be produced on request for extreme environments.

Q5: Is there a risk of the chrome layer flaking or peeling?

A5: Not if properly produced. At Shandong Baokun, rigorous surface preparation and state-of-the-art plating processes ensure excellent adhesion, minimizing the risk of flaking or peeling.

Q6: What types of packaging are available?

A6: Rods can be packed in wooden cases, steel frames, or custom packaging per customer requirements to ensure safe transit.

Q7: Can I order a 1045 chrome plated rod with finished thread ends or holes?

A7: Absolutely. We provide custom machining services, including threading, drilling, or grooving to suit your specific application.

Q8: Are there minimum order quantities?

A8: We offer flexibility on order quantities—from small batches for prototyping to large orders for industrial production.

Q9: How do I maintain my 1045 chrome plated rods for maximum service life?

A9: Regularly clean, inspect for surface damage or corrosion, and avoid striking or denting the chrome surface. Replace rods if deep corrosion or pitting is detected.

Q10: Can you provide third-party inspection certificates?

A10: Yes, third-party inspections and material certificates (e.g., EN10204 3.1/3.2) are available upon request.

wedge wire screen manufacturers

How to Choose the Best Wedge Wire Screen Manufacturers for Your Project!

/ / / 0 Comments

In a world where industrial filtration, water treatment, mineral processing, and separation technologies are more critical than ever, selecting the right partners for mission-critical components is paramount. Wedge wire screens—renowned for their efficiency, durability, and precise separation capabilities—are essential elements across a wide spectrum of industries. Yet, many buyers find themselves overwhelmed by options and uncertain about which suppliers to trust. To address these concerns, Anping County BT Wire Mesh Products Co., Ltd, a global leader in wedge wire screen manufacturing, shares professional insights on how to choose the best wedge wire screen manufacturers for your project.

Spokesperson Grace Cui remarks, “Wedge wire screens may appear to be a simple product, but their performance can impact the entire success of your operation. With so many wedge wire screen manufacturers on the market, it is essential to choose a partner who meets your specifications for quality, customization, service, and value.”

What Is a Wedge Wire Screen? Why Does Manufacturer Selection Matter?

A wedge wire screen is a sophisticated filtration device consisting of surface profiled wires (wedge or V-shaped) precisely welded onto support rods. This design forms a series of slots or apertures, carefully sized to separate solids from liquids or gases in a huge variety of processes—from water purification to oil & gas, food processing, mining, pulp & paper, and beyond.

However, not all screens are created equal. According to Grace Cui, “The quality of the screen—its material, welding technique, slot uniformity, robustness, and resistance to corrosion—can define the success or failure of an entire project. It’s essential to partner with the right wedge wire screen manufacturers with proven expertise, not simply the fastest or cheapest supplier.”

Criteria for Selecting the Best Wedge Wire Screen Manufacturers

Choosing the ideal wedge wire screen manufacturers involves a thorough evaluation, extending far beyond price comparison. Here are the crucial criteria you must assess:

1. Experience and Technical Capability

  • Manufacturing Legacy: How long has the manufacturer been producing wedge wire screens? Longevity reflects technical know-how and reliability.
  • Project Portfolio: Look for companies with experience across industries and applications. This indicates wide-ranging expertise and adaptability.

2. Quality Standards and Certifications

  • Material Certifications: Ensure that the supplier uses certified raw materials, such as 304/316L stainless steel or special alloys.
  • Production Standards: Look for ISO certification or compliance with industry-specific standards.
  • Traceability: Quality wedge wire screen manufacturers will provide full traceability for every lot delivered.

3. Customization and Engineering Support

  • Custom Design: Every industrial project has unique requirements. The best producers offer tailored slot sizes, wire profiles, dimensions, and mounting solutions.
  • Technical Drawings and Prototyping: Can the supplier produce detailed CAD drawings and samples before mass production?
  • Application Engineering: Leading companies like Anping County BT offer free consulting to ensure optimal product-selection and integration.

4. Product Quality and Consistency

  • Slot Accuracy: Consistent slot width across the screen maximizes separation efficiency and prevents premature failure.
  • Durability: Check for advanced welding methods, reinforcement, and post-weld treatment for corrosion and wear resistance.
  • Test Reports: Request actual performance test results for strength, flow rate, and slot retention.

5. Customer Support and After-Sales Service

  • Responsive Communication: Fast, clear answers are vital—both before and after purchase.
  • Warranty and Replacement: Leading manufacturers, such as Anping County BT, stand by their products with strong warranties and global support.

6. Production Capacity and Delivery

  • Scalability: Ensure the manufacturer can deliver large or rush orders within your timelines.
  • Global Logistics Experience: Trusted wedge wire screen manufacturers have a record of trouble-free international delivery.

7. Reputation and Client Reviews

  • References: Ask for references or case studies from similar projects.
  • Online Reputation: Read third-party reviews and industry feedback.

The Anping County BT Wire Mesh Products Co.,Ltd Advantage

As one of China’s most established and innovative wedge wire screen manufacturers, Anping County BT Wire Mesh Products Co., Ltd demonstrates the gold standard for selection criteria:

  • Decades of manufacturing experience and a global project portfolio.
  • Strict adherence to ISO quality systems.
  • Ability to engineer solutions for routine or complex, custom requirements.
  • Rigorous inspection, test reporting, and full after-sales support.
  • Fast response and international shipping expertise.

Grace Cui emphasizes, “We understand that every minute of downtime or unexpected quality issue can have costly consequences. Our commitment to precision, traceability, and partnership ensures customers consistently receive wedge wire screens that help their operations run seamlessly and profitably.”

Case Example: Selecting the Right Manufacturer Makes a Difference

Consider a municipal water treatment plant replacing multiple flat screens and basket filters with modern wedge wire modules. Initial bids focused exclusively on price, and a less-experienced supplier was chosen. Within 18 months, corrosion and slot deformation led to multiple shutdowns, regulatory non-compliance, and costly replacements.

Upon reevaluation, the plant partnered with Anping County BT Wire Mesh Products Co., Ltd—who delivered screens precisely matched to the local water chemistry, with tighter slot tolerances and certified 316L stainless steel. The new screens have operated flawlessly for over four years, with periodic monitoring and support from Anping’s engineering team.

This example underscores that with wedge wire screen manufacturers, quality and reliability are the best investment.

About Anping County BT Wire Mesh Products Co.,Ltd

Based in the heart of China’s wire mesh industry, Anping County BT Wire Mesh Products Co.,Ltd has provided world-class screening, filtration, and separation solutions for [XX] years. Our advanced manufacturing, deep engineering expertise, and strict quality controls make us the ideal partner for demanding industrial, municipal, and environmental projects worldwide.

Getting it Right the First Time

Choosing the right wedge wire screen manufacturers is a strategic decision with far-reaching consequences. Your choice influences not only equipment performance but also process efficiency, compliance, maintenance costs, and ultimately your organization’s profitability.

Trusted manufacturers provide far more than just a product—they deliver partnership, peace of mind, and the technological backbone of your operation.

Grace Cui concludes, “At Anping County BT Wire Mesh Products Co.,Ltd, our success is measured by our customers’ success. Our mission is to provide not just wedge wire screens, but total solutions that deliver reliability, longevity, and true value. We invite you to consult with our team for your next project and experience the benchmark in industrial screen supply.”documentation.

For media inquiries, product quotations, or technical consultation, please contact:

Company Name: Anping County BT Wire Mesh Products Co., Ltd
Contact Name: Grace Cui
Contact Phone: +86 18812181938
Address: No.24, Canda Industry Zone, Anping County, Hengshui, Hebei China
Email: grace@baitongfilter.com
Website: https://www.wedgescreens.com/

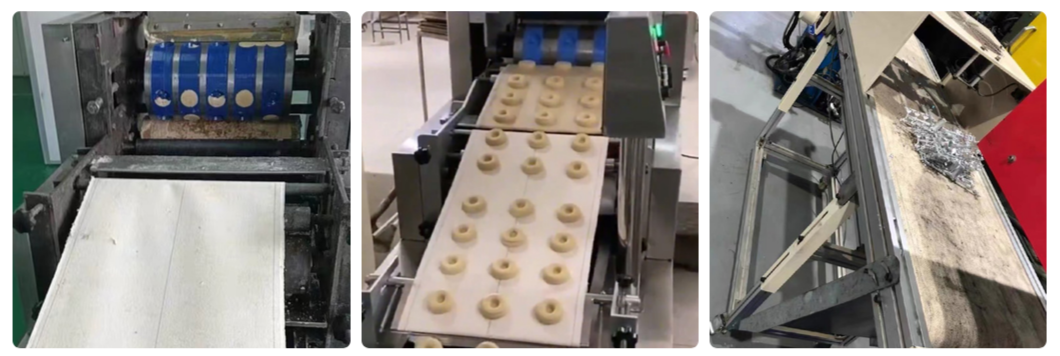

Cotton Conveyor Belt

Top Maintenance Tips to Extend the Life of Your Cotton Conveyor Belt!

/ , / , / 0 Comments

In the dynamic world of material handling, the reliability and efficiency of conveyor systems continue to be a defining factor for success across multiple industries. Among the diverse types of conveyor belts in use, the Cotton Conveyor Belt—valued for its biodegradable, lightweight, and anti-static properties—holds a unique position in industries such as agriculture, textile, food processing, and packaging.

1. Understanding the Importance of Cotton Conveyor Belt Maintenance

To appreciate why routine maintenance matters, it’s worth exploring the structure and function of a cotton conveyor belt. Made from natural cotton fibers, these belts provide gentle handling, superior grip, and excellent absorption properties, making them suitable for transporting sensitive materials.

However, unlike synthetic belts, cotton belts require vigilant attention. The organic fibers are susceptible to factors such as moisture, excessive friction, misalignment, and contaminants. Neglected maintenance not only shortens belt life but also increases downtime, damages products, and raises energy costs as systems work harder to compensate for inefficiencies.

Benefits of proper maintenance include:

  • Increased lifespan of your cotton conveyor belt.
  • Better energy efficiency and reduced downtime.
  • Consistent product quality and reduced material loss.
  • Safer working environments for maintenance staff.

By understanding the root causes of wear and proactively addressing them, you minimize the risk of unplanned stops and unexpected expenses.

2. Routine Inspection: The First Line of Defense

Successful maintenance always begins with regular inspection. A carefully planned inspection schedule allows you to catch issues early before they become critical.

A. Frequency of Inspections

  • Daily: Visual and audible checks for unusual belt sounds, obvious damage, or misalignment.
  • Weekly/Monthly: Closer inspections for tension, frays, tears, or uneven wear.
  • Quarterly/Annually: Examination of rollers, pulleys, belt joints, and the entire conveyor assembly.

B. What to Look For

  • Surface Wear: Check for areas that appear more worn or glazed than others.
  • Fraying Edges: Unraveling cotton fibers indicate excessive friction or misalignment.
  • Cracks and Tears: Any visible damage calls for prompt attention or repair.
  • Belt Tracking: Ensure the belt runs true to the center of rollers without drifting or rubbing on the frame.
  • Abnormal Noise: Squeaking, grinding, or slapping noises often signal issues with tracking or tension.

Tip: Use a maintenance checklist tailored to your conveyor system’s specifications.

3. Proper Cleaning Techniques

Dirt, debris, and residue accumulate quickly on conveyor belts, leading to increased friction and reduced efficiency. Cotton conveyor belts, being porous, can trap contaminants more readily than their synthetic counterparts.

A. Recommended Cleaning Methods

  • Dry Brushing: Use a soft-bristled brush to gently sweep away surface debris.
  • Vacuuming: Regular vacuuming is ideal for removing fine dust from the belt’s surface and strands.
  • Spot Cleaning: For stubborn stains or localized buildup, use a damp (not wet) cloth and a mild, non-abrasive detergent.
  • Air Blowers: In some environments, an air blower can remove dust from hard-to-reach places.

B. What to Avoid

  • Harsh chemicals: Bleach, solvents, or industrial cleaners can degrade cotton fibers and shorten belt life.
  • High-pressure washing: Water can make cotton belts swell, leading to misalignment and possible mold growth.

C. Cleaning Frequency

The ideal frequency depends on the operating environment. For dusty industries, daily cleaning may be necessary, while less demanding environments may require weekly or bi-weekly cleaning.

Pro Tip: Always dry the belt thoroughly after any damp cleaning to prevent fiber swell or mold.

4. Belt Alignment and Tracking

Misalignment is a primary cause of edge fraying, excessive wear, and system inefficiency. Therefore, keeping your cotton conveyor belt correctly aligned is vital.

A. Causes of Misalignment

  • Faulty or shifted rollers
  • Defective pulleys
  • Build-up of material on the belt or system frame
  • Uneven load distribution

B. Correction Steps

  • Adjust Rollers: Ensure all rollers are parallel and properly secured.
  • Check Pulley Alignment: Use a straight edge or laser alignment tool.
  • Position Loads Evenly: Place material evenly across the belt to avoid side load.
  • Monitor After Adjustments: Re-inspect alignment 24-48 hours after making changes.

Even small deviations, if left uncorrected, can lead to expensive repairs and shortened belt life.

5. Managing Tension and Load

Tension, or the tightness of your cotton conveyor belt, plays a crucial role in performance and longevity. Both over-tensioning and under-tensioning can cause damage.

A. Correct Tensioning Procedures

  • Manufacturer Guidelines: Always follow tensioning specifications supplied with your belt.
  • Test by Hand: When pushed, the belt should dip slightly but remain taut.
  • Adjust Gradually: Make small adjustments to avoid over-stressing the belt.
  • Check Regularly: Environmental changes like temperature and humidity can affect cotton tension.

B. Effects of Improper Tension

  • Over-Tensioning: Leads to stretched fibers, loss of elasticity, and premature snapping.
  • Under-Tensioning: Can cause belt slipping, poor material handling, and irregular wear.

C. Preventing Slippage or Stretching

  • Periodically check and adjust tension.
  • Inspect belt for signs of elongation or looseness.
  • Ensure consistent, well-defined load distribution.

6. Lubrication and Accessory Care

While cotton belts themselves don’t require lubrication, the conveyor’s moving parts—bearings, rollers, shafts—must be maintained to avoid excessive friction that could harm the belt.

A. Lubrication Tips

  • Use Appropriate Lubricants: Choose lubricants compatible with food-safe or textile-use environments when necessary.
  • Avoid Over-lubrication: Excess oil or grease can contaminate the belt, attracting more dust and debris.
  • Clean Surroundings: Wipe away any spillage before restarting machines.

B. Accessory Maintenance

  • Rollers and Pulleys: Clean and inspect for smooth rotation, wear, and correct alignment.
  • Frame Supports: Ensure no sharp edges are touching the belt.
  • Guides and Rails: Regularly check for buildup and proper spacing.

7. Addressing Common Problems in Cotton Conveyor Belts

Proactive maintenance means recognizing and responding to problems as soon as they arise.

A. Surface Glazing and Hardening

Repeated friction can cause cotton belt surfaces to become shiny and less grippy. Light sanding followed by cleaning can restore texture, but stabilize root causes like tension or misalignment.

B. Moisture and Humidity

Cotton is hygroscopic—meaning it readily absorbs moisture. High humidity or direct contact with water can cause swelling, fiber breakdown, and eventual rot. Maintain a controlled environment and minimize water exposure.

C. Managing Static and Dust

Excessive dust can cause static buildup, particularly in dry environments. Regular cleaning and checking for grounding within your conveyor system will reduce static-related threats.

D. Troubleshooting Tracking Issues

If the belt keeps drifting:

  • Check all rollers and pulleys for proper alignment and even wear.
  • Look for buildups restricting free movement.
  • Readjust and retest after making any changes.

8. Replacement vs. Repair: Making the Right Call

Eventually, belts fail due to fundamental wear. Knowing when to replace versus repair is crucial for cost-effective operations.

A. When to Repair

  • Minor fraying at edges
  • Small surface blemishes or minor tracking problems
  • Localized damage from debris

B. When to Replace

  • Extensive tearing or deep cracks
  • Severe loss of EPT (Elastic Polyurethane Thread) core integrity
  • Persistent tracking issues after repeated adjustments
  • Noticeable lengthwise stretch that can’t be retensioned

C. Storing Replacement Belts

  • Store in a cool, dry place away from sunlight.
  • Avoid stacking in a way that causes deformation.
  • Leave belts loosely coiled—do not bend tighter than the manufacturer’s minimum coil diameter.

D. Working with a Trusted Supplier

Shanghai Puteken Transmission System Co., Ltd. offers prompt delivery, expert technical support, and industry-grade belts—giving you confidence and reducing downtime.

9. Safety Considerations During Maintenance

Safety is paramount. Injuries can occur quickly if maintenance is performed on active or improperly secured systems.

A. Lockout/Tagout Procedures

  • Always shut down and lock out energy sources before maintenance.
  • Tag the equipment to alert others that maintenance is ongoing.

B. Personal Protective Equipment (PPE)

  • Wear gloves when handling the cotton conveyor belt.
  • Use safety goggles to protect from debris when brushing or blowing.
  • Wear non-slip shoes to prevent falls in damp environments.

C. Set up a Safe Area

  • Post warning signs around the working area.
  • Notify your team about ongoing maintenance.
  • Arrange tools and replacement parts within easy reach to avoid unnecessary movement.

10. Record-Keeping and Maintenance Scheduling

Good record-keeping adds consistency to your maintenance efforts.

A. Maintenance Logs

  • Record every inspection, noting belt condition and any adjustments.
  • List cleaning dates and products used.
  • Track tension checks and replacement history.

B. Scheduling Maintenance

  • Use digital maintenance management software to automate reminders.
  • Assign specific tasks to team members.
  • Review logs regularly to spot trends and anticipate issues.

Proactive maintenance is the cornerstone of a reliable, enduring, and high-performing cotton conveyor belt system. From careful inspection and gentle cleaning to precise tensioning and proper alignment, each step detailed above contributes directly to longer belt life and better operational efficiency. At Shanghai Puteken Transmission System Co., Ltd., we combine advanced manufacturing with comprehensive support, empowering you to maintain a safe, productive facility.

Frequently Asked Questions (FAQs)

Q1: How often should I inspect my cotton conveyor belt?

A: Daily visual inspections are recommended, with more detailed assessments weekly and monthly. Regular inspections help you spot early warning signs of wear and address them before they lead to larger problems.

Q2: Can I use water for cleaning my cotton conveyor belt?

A: It’s best to avoid water unless absolutely necessary. Cotton belts can absorb water, leading to swelling or mildew. Dry brushing or vacuuming is usually sufficient. If you must use damp cleaning, dry the belt thoroughly afterwards.

Q3: What are the most common causes of premature cotton conveyor belt failure?

A: Improper tensioning, misalignment, and contamination with debris or chemicals are leading causes. Regular inspection and proper handling mitigate these risks.

Q4: How do I know whether to repair or replace my cotton conveyor belt?

A: Minor fraying and small tears may be repaired, but widespread damage, severe cracking, or persistent misalignment indicate it’s time for a replacement.

Q5: Can Shanghai Puteken Transmission System Co., Ltd. help with on-site maintenance?

A: Yes, our technical support team provides on-site and remote services for installation, inspection, maintenance, and troubleshooting.

Q6: What should I do if the belt keeps slipping or stretching?

A: Check and adjust tension, inspect for overloading, and examine pulleys for smooth operation. Persistent slippage may indicate the need for belt replacement.

Q7: Are cotton conveyor belts suitable for high-temperature or chemical environments?

A: Cotton belts are best used for light to medium-duty tasks and where gentle handling is required. Harsh chemicals or high temperatures can degrade natural fibers.

Q8: How long will a cotton conveyor belt last with proper maintenance?

A: With diligent care, a high-quality cotton conveyor belt from Shanghai Puteken Transmission System Co., Ltd. can last several years, depending on load and environment.

Plastic Thermoforming Machine

How a Plastic Thermoforming Machine Reduces Production Costs and Increases Profits?

/ , , / , , , / 0 Comments

A Plastic Thermoforming Machine can help manufacturers reduce production expenses while improving output, product consistency, and profitability. By heating plastic sheets and forming them over molds using vacuum, pressure, or mechanical force, thermoforming provides an efficient way to produce packaging, trays, containers, automotive components, medical products, and other customized plastic parts.

One major advantage of a Thermoforming Machine is its material efficiency. The process can minimize material waste, helping businesses lower raw-material costs. Modern machines also feature precise temperature, pressure, and timing controls, which improve product consistency and reduce defects, rework, and production losses.

Also Read: Benefits of Using Thermoforming Machines in Packaging

Automation can further improve productivity by reducing manual operations and shortening production cycles. Faster forming, cooling, and trimming processes allow manufacturers to complete more orders in less time. In addition, flexible thermoforming technology supports different plastic materials, product sizes, shapes, and thicknesses, making it suitable for both customized and large-scale production.

For businesses seeking reliable and cost-effective plastic manufacturing solutions, choosing the right equipment and supplier is essential. Shanghai Zhanshi Mechanical Equipment Co., Ltd. provides advanced thermoforming solutions designed to support efficient production, consistent quality, and long-term business growth.

Visit https://tinyurl.com/36uenuvf or give us a call at +86 13916846091 to learn more about the Plastic Thermoforming Machine!

DC MCB

Why Every Solar System Needs a Reliable DC MCB: Wenzhou Typle Launches State-of-the-Art DC MCB for Global Markets! [News]

/ , , , / , / 0 Comments

Wenzhou, Zhejiang, China, 27.08.2026 – As the world rapidly embraces clean, sustainable solar energy, the importance of advanced protection devices becomes paramount. Today, Wenzhou Typle New Energy Technology Co., Ltd., a global leader in solar innovation, proudly announces the launch of its latest product: the DC MCB (Direct Current Miniature Circuit Breaker). Designed for next-generation solar installations, this robust solution sets new benchmarks in safety, reliability, and performance.

Chris, spokesperson for Wenzhou Typle New Energy Technology Co., Ltd., states, “With modern solar systems scaling up in both size and complexity, a reliable DC MCB is no longer optional—it is absolutely essential. Our new DC MCB not only meets rising international standards but delivers the kind of peace of mind that end-users, installers, and investors demand.”

The Heart of Safe Solar: Why DC MCB Matters More Than Ever

As solar installations grow, the risk of electrical faults and overcurrents increases dramatically. Conventional protection devices, originally engineered for alternating current (AC), are not designed to handle the relentless and unidirectional flow of DC electricity generated by solar panels. This is where a DC MCB steps in, providing precise, rapid protection that is tailored specifically for solar environments.

Chris explains:

“In a DC system, unlike AC, the electrical current never passes through zero, which means any arc or fault can persist and escalate. Only a true DC MCB—designed with specialized materials, contacts, and arc-extinguishing chambers—can safely and effectively protect both people and equipment. Without such protection, the risk of system damage, fire, and injury is substantial.”

Wenzhou Typle’s New DC MCB: Setting a New Standard

The DC MCB from Wenzhou Typle New Energy Technology Co., Ltd. is more than just a circuit breaker. It is the result of years of R&D, feedback from installers across six continents, and rigorous real-world testing. This product shines in several key areas:

  • Dedicated DC Protection: Engineered exclusively for DC circuits, supporting up to 1000VDC as demanded by today’s solar projects.
  • High Breaking Capacity: Fast arc interruption and high short circuit withstand ratings ensure reliable protection even in harsh fault conditions.
  • Thermal & Magnetic Tripping Mechanisms: Dual tripping methods guarantee both long-term overload and instant fault protection—essential for solar’s variable conditions.
  • Simple Installation: Compact DIN-rail mounting, clearly marked terminals, and tool-free reset make installation fast and hassle-free.
  • Rugged Construction: UV-resistant housing, corrosion-proof contacts, and a high IP rating (IP20/IP40) suitable for demanding field conditions.
  • Global Compliance: Fully certified to meet IEC 60947-2 and regional standards including UL 489B, making the DC MCB suitable for use worldwide.

Also Read: DC MCB vs DC Isolator: What’s the Difference and When Do You Need Each?

The Role of DC MCBs in Modern Solar Systems

Solar power systems are fundamentally different from traditional electrical grids. Solar arrays generate DC electricity, which is often stored in batteries or converted to AC using an inverter. Each part of this flow—especially at string level, within combiner boxes, and at inverter or battery connections—requires reliable circuit protection.

A DC MCB serves several key functions:

  1. Fault Isolation: Detects and interrupts overcurrent and short-circuit conditions quickly, before equipment, wiring, or even the solar panels themselves suffer damage.
  2. Fire Prevention: By eliminating sustained faults and interrupting dangerous arcs, the DC MCB plays a critical role in fire safety.
  3. System Segmentation: Allows installers and operators to isolate parts of a system for safe maintenance, expansion, or emergency response.
    -Code Compliance: Meets national and international electrical codes that require DC overcurrent protection—critical for insurance and permitting.

Technology and Safety at the Forefront

Wenzhou Typle’s DC MCB features state-of-the-art arc suppression technology. Inside each breaker, moving contacts, arc chutes, and powerful magnets work together to split and stretch electrical fires (arcs) before they can cause harm. An insulated, thermally robust enclosure protects users and prevents accidental contact.

Moreover, precise tripping curves have been engineered to accommodate both the start-up surges typical of solar and quick response to genuine fault currents, minimizing unnecessary downtime while ensuring maximum security.

Built for Installers, Favored by Professionals

Solar professionals know that time is money. That’s why every detail of Wenzhou Typle’s DC MCB is optimized for the field:

  • Large, ergonomic toggle switches for use with gloves
  • Screwless, vibration-resistant terminals for fast, secure connections
  • Modular design for easy expansion or quick replacement
  • Clear status indication for instant visual safety checks

Global Adoption and Sustainability Impact

Chris emphasizes the company’s global mission:

“Our DC MCB is already being welcomed by installers and developers in Europe, Africa, Southeast Asia, and the Americas. As governments and businesses push for higher proportions of renewable energy, trusted protection is what keeps solar advancing safely. At Wenzhou Typle, we believe sustainability and safety can go hand in hand.”

Functioning alongside smart meters, data loggers, and other modern system components, the DC MCB is a foundational element of Wenzhou Typle’s vision for a digital, reliable, and sustainable energy future.

About Wenzhou Typle New Energy Technology Co., Ltd.

Wenzhou Typle New Energy Technology Co., Ltd. specializes in the production of electrical protection, switching, and monitoring devices for the global renewable energy industry. Setting industry standards in solar safety and reliability since its founding, Wenzhou Typle is committed to powering the clean energy revolution—one project at a time.

Media Contact:

Company Name: Wenzhou Typle New Energy Technology Co., Ltd.
Contact Name: Chris
Contact Phone: +86 180 7206 5770
Address: 5th Floor, No.28 Xinguang Avenue, Xinguang Industrial Zone, Liushi Town, Yueqing, Wenzhou, Zhejiang, China
Email: inquiry@typle-electric.com
Website: https://www.typle-electric.com/

Electrical Junction Box

How to Choose the Right Electrical Junction Box for Your Next Project!

/ , , / , , / 0 Comments

Every successful electrical installation relies on a solid foundation of safety, organization, and planning. Yet, one of the most essential—and sometimes overlooked—components in any wiring system is the Electrical Junction Box. Whether you’re managing a complex industrial facility, building a new home, or upgrading a commercial property, choosing the right Electrical Junction Box is not just a matter of compliance—it’s a strategic decision that ensures reliability, safety, and longevity for your entire electrical infrastructure.

With the market offering more options than ever before, selecting the ideal junction box can feel daunting. Different applications come with specific requirements, from material type and size to ratings, configuration, and specialized features like weather resistance or built-in cable management. Making the wrong choice can lead to future headaches: from failed inspections and system malfunctions to costly modifications or potential fire hazards.

1. What is an Electrical Junction Box?

An Electrical Junction Box is a protective enclosure designed to house electrical connections. Its primary function is to join two or more wires together, securely organizing and protecting electrical terminations from outside damage, dust, moisture, and accidental contact. While the concept may sound simple, the junction box is absolutely critical to wiring safety, system reliability, and ongoing maintenance.

Inside a typical box, you’ll find wire nuts, terminal blocks, or spliced conductors. The box is often mounted to a wall, ceiling, or embedded within a surface, keeping connections contained and shielded. Junction boxes also provide a convenient access point for future changes or troubleshooting.

At Wenzhou Typle New Energy Technology Co., Ltd., our Electrical Junction Boxes are engineered with high-quality materials, robust construction, and a range of sizes to accommodate every conceivable application. No matter the voltage, environment, or integration challenge, a purpose-built junction box is your first defense against short circuits, electrical fires, and costly downtime.

2. Why the Right Electrical Junction Box Matters

Selecting the appropriate Electrical Junction Box is more than an exercise in compliance. A box that’s too small, incorrectly rated, or made of the wrong material can hinder installation, reduce reliability, or even create dangerous hazards. The right junction box ensures:

  • Electrical Safety: By shielding live conductors and minimizing the risk of accidental contact or arcing
  • System Durability: With long-lasting protection against corrosion, physical damage, and ingress of moisture or dust
  • Code Compliance: Meeting or exceeding standards keeps you clear of inspection failures and legal liability
  • Easy Maintenance: Simplifies troubleshooting, upgrades, and repairs by allowing access and reconfiguration of connections
  • Project Versatility: Accommodates a range of wiring methods, connectors, and cable types for different installations

With so much riding on this one component, trusting a reputable manufacturer like Wenzhou Typle New Energy Technology Co., Ltd. is the easiest way to safeguard your installation and reputation.

3. Types of Electrical Junction Boxes

Electrical Junction Boxes come in a broad spectrum of forms to match the requirements of varied installations. The most common types include:

a. Standard Rectangular Boxes:

Best for simple wire splicing in home or office environments.

b. Square and Deep Boxes:

Ideal for complex circuits requiring multiple wire connections or larger devices.

c. Round/Ceiling Boxes:

Designed for mounting light fixtures or ceiling fans, with additional support for weight.

d. Waterproof/Weatherproof Boxes:

Outfitted with gaskets and seals, these are made to handle outdoor conditions, rain, and humidity.

e. Metallic vs Non-Metallic Boxes:

Metal boxes (steel, aluminum) offer superior physical protection and grounding, ideal for industrial settings. Non-metallic (PVC, polycarbonate) boxes provide corrosion resistance for damp or chemically aggressive environments.

f. Hazardous Location Boxes:

Specially certified enclosures for areas with explosion risks or high temperatures.

h. Custom and Modular Junction Boxes:

Assembled for unique requirements, such as in solar PV systems, heavy equipment, or process control panels.

At Wenzhou Typle New Energy Technology Co., Ltd., our team can guide you to the best type for your job, ensuring every need is met from stock or custom solution.

4. Key Considerations: Material, Size, and Configuration

A. Material:

The material of the Electrical Junction Box determines its strength, chemical resistance, grounding capability, and weight:

  • Metallic: Offers robust physical protection, good heat dissipation, and can serve as a grounding path.
  • Plastic (PVC/Polycarbonate): Lightweight, corrosion-resistant, non-conductive, and ideal for damp or chemical-prone areas.

B. Size:

Box size affects not only code compliance (box fill calculations) but also ease of installation. Always choose a box large enough for both present and anticipated wiring needs. Overcrowding causes overheating and may violate local codes.

C. Configuration:

Look at the number and positions of entry points (knockouts), mounting tabs, internal supports, and whether terminal strips or grounding bars are pre-installed.

Ask the following before purchasing:

  • How many wires or cables need to enter?
  • Are there devices (switches, sockets) to be mounted inside?
  • Will the box be exposed, recessed, or embedded?

Expert consultation with Wenzhou Typle ensures your chosen Electrical Junction Box fits your plans perfectly, minimizing surprises down the road.

5. Environmental Protection and Rating Standards

Electrical Junction Boxes must withstand their environment without compromising safety or function. Protection is measured using the IP (Ingress Protection) or NEMA (National Electrical Manufacturers Association) rating systems:

  • IP65/IP66/IP67: Indicates protection against dust and resistance to water jets or immersion—crucial for outdoor or washdown settings.
  • NEMA 3, 4, 4X: Rates enclosures for outdoor use and, in the case of X, for corrosive atmospheres.

For installations near saltwater, heavy industry, or in hazardous locations, it is essential to choose junction boxes with proper certifications (such as UL, CE, or ATEX for hazardous locations). All Wenzhou Typle boxes are thoroughly tested to meet or exceed these standards, ensuring regulatory compliance and peace of mind.

6. Installation Environments: Indoor vs Outdoor

The expected environment dictates the type of Electrical Junction Box required:

  • Indoor: Focus on size, accessibility, and integration with wall/ceiling structure.
  • Outdoor: Prioritize weatherproofing (gasketed lids, corrosion resistance, UV stabilization), lockable covers, and secure mounting hardware. The box should withstand temperature swings, rain, snow, and direct sun exposure.

Specialized Environments:

Industrial sites may need boxes built for vibration, chemical fumes, or dust. Installations in potentially explosive atmospheres demand spark-proof, certified enclosures.

Whenever in doubt, consult Wenzhou Typle’s product experts; a small investment in the right box saves major costs and complications later.

7. Safety Features and Code Compliance

A properly selected and installed Electrical Junction Box ensures the highest level of safety for users and technicians:

  • Fire Resistance: The enclosure should contain sparks or arcing and be made of flame-retardant material.
  • Proper Grounding: Metallic boxes must be bonded to ground; non-metallic enclosures require separate ground bars.
  • Secure Covers: Tight-fitting, lockable covers prevent accidental access to live parts.

Code Compliance:

Boxes must meet relevant local, national, and international electrical codes (such as NEC, IEC, or local equivalents). Features such as wire clamps, adequate fill space, and labeling are all part of compliant designs.

Wenzhou Typle’s Electrical Junction Boxes meet or exceed all major safety codes, and our team can assist with documentation and certification as part of your project.

8. Specialized Junction Boxes (Solar, Hazardous Environments, etc.)

Some projects demand junction boxes with very specific features or certifications:

-Solar/PV Systems:

Here, boxes need to be UV-resistant, weatherproof, and tailored for high-voltage DC wiring.

-Hazardous Locations:

ATEX/IECEx-rated boxes are needed for sites with explosive gases, dust, or vapors.

-Wet/Marine Applications:

Use corrosion-proof materials (ABS, polycarbonate, stainless steel) with gasketed seals.

Wenzhou Typle New Energy Technology Co., Ltd. excels in offering specialized solutions for demanding applications—if your project presents unique challenges, we are ready to deliver custom-engineered boxes to match.

9. Common Mistakes to Avoid

Don’t fall into these typical traps when choosing an Electrical Junction Box:

  • Undersizing: Underestimating box fill leads to cramped wires, overheating, and code violations.
  • Wrong Material: Using metallic boxes in corrosive environments or plastics in high-impact areas.
  • Ignoring Ratings: Failing to heed IP/NEMA ratings for outdoor or harsh settings.
  • Neglecting Future Needs: Not allowing space for future wiring expansions.
  • Improper Grounding: Skipping bonding in metallic enclosures, risking shock hazards.

Proper consultation prevents these issues. At Wenzhou Typle, support and guidance are part of every purchase.

10. How to Specify and Source Your Electrical Junction Box

When specifying an Electrical Junction Box, include all relevant details such as:

  • Application/environment type (indoor, outdoor, industrial, hazardous)
  • Expected voltage/current and wire size
  • Number of cable entries/knockouts required
  • Mounting style (surface, flush, pole, ceiling)
  • Certification requirements (UL, CE, RoHS, ATEX, etc.)
  • Special features (transparent cover, lockable, modular, heat resistant, etc.)

You can source junction boxes directly from Wenzhou Typle’s broad catalog or work with our engineers for custom designs meeting the strictest specifications.

11. Why Choose Wenzhou Typle New Energy Technology Co., Ltd.?

Partnering with Wenzhou Typle New Energy Technology Co., Ltd. gives your project more than just a box—it gives you ongoing peace of mind:

  • Extensive Product Selection: From basic models to premium, fully custom enclosures.
  • Global Certification: Products accredited for all major markets and challenging environments.
  • Solutions for Every Sector: Residential, commercial, solar, industrial, marine, and more.
  • Speed and Service: Fast production turnaround and responsive technical support.
  • Engineering Expertise: Decades of manufacturing know-how, R&D-driven innovations, and strict quality control.

Your project deserves the best foundation. Wenzhou Typle delivers Electrical Junction Boxe that protect, comply, and perform.

Choosing the correct Electrical Junction Box is a pivotal decision in any successful electrical installation. Your choice not only impacts current safety and performance but also lays the groundwork for future upgrades, routine maintenance, and ongoing compliance. With so many types, materials, and configurations available, guidance from industry leaders like Wenzhou Typle New Energy Technology Co., Ltd. will ensure every detail is addressed.

Frequently Asked Questions (FAQ)

Q1: How do I know what size Electrical Junction Box I need?

A1: Calculate the total wire fill using code guidelines (NEC box fill calculations), including space for all conductors, connectors, and devices. When in doubt, err on the side of a larger box for flexibility.

Q2: Is it okay to use a plastic Electrical Junction Box outdoors?

A2: Yes, provided it is rated for outdoor use (IP65+ or NEMA 4X). Ensure UV resistance to prevent degradation.

Q3: What is a “knockout” on a junction box?

A3: A knockout is a pre-scored section that can be removed to allow cable entry. Choose boxes with the right number and size of knockouts for your cables and conduits.

Q4: Are all Electrical Junction Boxes fireproof?

A4: No, but quality boxes use flame-retardant materials. Always check the product specifications for fire resistance ratings.

Q5: Can I mount a junction box on a ceiling?

A5: Absolutely. Choose a ceiling box specifically rated for the weight and type of fixture you wish to install.

Q6: Does my Electrical Junction Box need to be grounded?

A6: Yes for metallic boxes. Grounding is vital for user safety and electrical code compliance.

Q7: How do I prevent condensation or water ingress?

A7: Use weatherproof boxes with gasketed lids, proper cable glands, and follow best installation practices for sealing.

Q8: Can I use the same box for both AC and DC wiring?

A8: Not recommended. AC and DC systems should be separated due to differing insulation requirements and safety codes.

Q9: What documentation should I keep for each installed junction box?

A9: Keep records of the box model, location, date of installation, and a wiring diagram for maintenance or future upgrades.

Q10: Can Wenzhou Typle provide custom-sized or branded Electrical Junction Boxes?

A10: Yes, we offer both customized sizes, knockouts, and branding upon request to match your specific project needs.

hard chrome plated piston rod

The Benefits of Choosing a Hard Chrome Plated Piston Rod for Hydraulic Systems! [News]

/ , , / , , , / 0 Comments

Liaocheng, ShanDong, China, 26.08.2026 – Shandong Baokun Metal Material Co. Ltd, a globally recognized leader in hydraulic system components and advanced steel products, is delighted to announce the official launch of its latest innovation: the hard chrome plated piston rod. This new product sets an industry benchmark by offering enhanced performance, reliability, and cost-savings for hydraulic applications in a wide array of industries, including manufacturing, construction, automotive, mining, and energy.

With this cutting-edge solution, Shandong Baokun Metal Material Co. Ltd unlocks powerful advantages for businesses that demand the highest standards of durability and efficiency in their hydraulic equipment.

What is a Hard Chrome Plated Piston Rod?

A hard chrome plated piston rod is a precisely engineered steel rod that is coated with a layer of hard chrome—a form of chromium electroplating—that provides superior hardness, excellent surface finish, and remarkable resistance to wear and corrosion.

How Is It Made?

The manufacturing process involves several key stages:

1. Material Selection: High-grade steel rods (commonly C45, 42CrMo4, or customized alloys) are selected for their mechanical integrity.
2. Precision Machining: Rods are ground and polished to very tight tolerances to ensure straightness and dimensional accuracy.
3. Surface Preparation: The rod is meticulously cleaned and prepared to ensure perfect chrome adhesion.
4. Hard Chrome Electroplating: Using advanced electrolytic technology, a thick, uniform layer of hard chrome (typically 20–30 microns) is deposited onto the rod.
5. Final Polishing: The coated rod is polished to achieve a mirror-like surface, often with a roughness average (Ra) below 0.2μm.

As a result, the hard chrome plated piston rod offers unparalleled longevity and reduced maintenance cycles—even in the most challenging operational conditions.

Key Benefits of Choosing a Hard Chrome Plated Piston Rod for Hydraulic Systems

Transitioning from uncoated or conventional rods to hard chrome plated variants brings a host of advantages that directly translate into better performance and cost-effectiveness:

1. Exceptional Wear Resistance

The hard chrome layer is extremely hard—typically 800-1000 HV—making it resistant to abrasion from seals, dust, and contaminants. This minimizes surface degradation over time, even with frequent or high-speed operation.

2. Outstanding Corrosion Protection

Hydraulic systems often operate in harsh or outdoor environments where moisture, chemicals, or saline atmospheres are prevalent. The hard chrome plated piston rod resists rust, oxidation, and chemical attack, extending cylinder life dramatically.

Also Read: Why Piston Rod Is Chrome Plated?

3. Superior Surface Finish

A mirror-smooth surface ensures minimal friction between the rod and cylinder seals. This means:

  • Less energy loss
  • Reduced heat generation
  • Extended seal and cylinder service life
  • Quieter and smoother machine operation

4. High Fatigue Strength

The chrome plating process not only enhances surface hardness but also contributes to the fatigue strength of the rod, allowing it to sustain repeated cycles and heavy loads without cracking or deformation.

5. Minimized Downtime and Lower Total Cost of Ownership

Longer lifespan and reduced incidence of breakdowns result in fewer repairs and replacements, ultimately providing better value and lower operational costs for end users.

6. Compatibility with a Range of Hydraulic Fluids

The hard chrome finish is inherently inert to most mineral oils, synthetic fluids, and specialty hydraulic fluids, making these rods ideal for a diverse set of hydraulic applications.

Applications Across Industries

The new hard chrome plated piston rod from Shandong Baokun Metal Material Co. Ltd finds use in:

  1. Earthmoving and construction equipment (excavators, loaders, bulldozers)
  2. Mobile hydraulic applications (cranes, lifts, garbage trucks)
  3. Industrial automation (presses, injection molding machines, robotics)
  4. Agricultural machinery (tractors, harvesters)
  5. Marine and offshore applications
  6. Mining equipment

The rod’s design also allows for seamless retrofitting in most existing hydraulic cylinder assemblies.

Environmental Responsibility

Recognizing global trends toward sustainability, Shandong Baokun employs advanced emission control, responsible chemical recycling, and energy-efficient processes throughout production. The new product is manufactured in accordance with RoHS and REACH directives—meeting or exceeding the expectations of eco-conscious clients worldwide.

Technical Specifications & Customization

Available in a spectrum of diameters (8mm to 140mm), lengths (up to 12 meters), and grades, Shandong Baokun can fully customize the hard chrome plated piston rod to meet OEM or end-user specifications.

  1. Tolerances: H8/f7, with tight run-out and straightness as low as 0.1mm/m
  2. Surface Hardness: 800-1000 HV
  3. Chrome Thickness: 20–30+ microns
  4. Surface Finish: Ra ≤ 0.2μm
  5. Base Material: C45, 42CrMo4, Custom alloys
  6. Certification: ISO 9001, EN10277, ISO 14001

About Shandong Baokun Metal Material Co. Ltd:

Shandong Baokun Metal Material Co. Ltd is an internationally recognized manufacturer and exporter of high-precision steel tubes, piston rods, honed tubes, and related hydraulic components. With a technology-driven approach, strict quality management, and a global service network, Shandong Baokun supplies leading OEMs and distributors with components for the world’s most demanding applications.

Shandong Baokun Metal Material Co. Ltd proudly invites global partners to experience the new standard in hydraulic system reliability with the launch of our hard chrome plated piston rod. Businesses looking for increased operational efficiency, minimized downtime, and sustainable value now have the ideal component for their next project.

Media Contact:

Company Name: Shandong Baokun Metal Material Co., Ltd
Contact Name: Ms. Sun
Contact Phone: +86 15763576989
Address: Room 1211, Commercial Office Building 2, Development Zone, Liaocheng, ShanDong, China
Email: info@sdbkmetal.com
Website: https://www.sdbksteel.com/

Kevlar Conveyor Belt

High Temperature Kevlar Conveyor Belt for Glass Tableware – Shanghai Puteken

/ , , / , , , / 0 Comments

Glass tableware manufacturing involves high-temperature processes that require conveyor belts with excellent heat resistance, strength, and durability. A Kevlar Conveyor Belt is a reliable solution for transporting hot glass products through demanding production stages. Reinforced with high-strength Kevlar fibers, these belts are designed to provide stable performance under challenging operating conditions.

Why Choose a Kevlar Conveyor Belt?

  • High Temperature Resistance: A Kevlar Conveyor Belt can withstand elevated temperatures, making it suitable for conveying hot glass tableware after forming, heating, or heat-treatment processes.
  • Excellent Tensile Strength: Kevlar reinforcement provides outstanding strength while maintaining a lightweight and flexible belt structure. This helps the belt handle continuous production demands effectively.

Also Read: Kevlar Conveyor Belt: Applications

  • Superior Wear Resistance: Glass manufacturing environments can expose conveyor belts to heat, friction, and repeated operation. Kevlar reinforcement helps improve resistance to wear and supports longer service life.
  • Reliable Conveying: The belt provides smooth and stable transportation, helping prevent production interruptions and maintain consistent material flow.
  • Industrial Versatility: Besides glass tableware, Kevlar Conveyor Belts can be used in other high-temperature conveying applications where strength and thermal performance are essential.

Shanghai Puteken Transmission System Co., Ltd. provides professional conveyor belt solutions for modern industrial applications. Its Kevlar Conveyor Belt combines high-temperature performance, durability, strength, and flexibility, making it an excellent choice for glass tableware production lines. By using a suitable high-temperature conveyor belt, manufacturers can improve conveying efficiency, reduce maintenance requirements, and support continuous production.

Click https://tinyurl.com/yewt82cz to learn more about Kevlar Conveyor Belt. You can also contact us via email at putekenbelt@gmail.com or by phone at +86 18201785896

HTD Timing Belt

Why HTD Timing Belts Are Essential for Modern Industrial Equipment

/ , , / , , , / 0 Comments

Modern industrial equipment requires reliable, efficient, and precise power transmission to maintain consistent production. An HTD Timing Belt is an excellent solution for applications that demand accurate synchronization, high torque transmission, and dependable operation. With its optimized tooth profile, an HTD timing belt provides positive engagement with compatible pulleys, helping reduce slippage and maintain precise motion.

One of the key advantages of an HTD Timing Belt is its ability to transmit high torque efficiently. This makes it suitable for conveyors, automation systems, packaging machinery, CNC equipment, and other industrial applications. Its durable construction also provides excellent resistance to wear, allowing equipment to operate reliably for extended periods.

Also Read: How Does an HTD Timing Belt Work?

HTD timing belts can help improve machine efficiency by minimizing power loss and supporting smooth, synchronized movement. Their low-maintenance design can also reduce downtime and operating costs compared with some traditional power transmission solutions. In addition, their relatively quiet operation makes them suitable for modern production environments where noise control is important.

Shanghai Puteken Transmission System Co., Ltd. supplies quality HTD Timing Belts designed for dependable industrial power transmission. With suitable specifications and professional support, these belts can help manufacturers achieve greater precision, efficiency, and long-term equipment performance.

For additional information on HTD Timing Belts, visit https://tinyurl.com/5n79twee, give us a call at +86 18201785896, or send us an email at putekenbelt@gmail.com right now!

automatic vacuum forming machine

How to Boost Production Efficiency with an Automatic Vacuum Forming Machine!

/ , , , / / 0 Comments

Shanghai, China, 21.08.2026 – In a significant technological leap for the global manufacturing sector, Shanghai Zhanshi Mechanical Equipment Co., Ltd. has announced the launch of its state-of-the-art automatic vacuum forming machine. This new offering exemplifies the company’s ongoing commitment to delivering advanced automation and production solutions that enable clients to streamline processes, reduce costs, and maintain uncompromising product quality.

Speaking at the company headquarters, Lewis, spokesperson for Shanghai Zhanshi Mechanical Equipment Co., Ltd., shared insights about how manufacturers can seize a competitive edge in today’s fast-paced market with the integration of an automatic vacuum forming machine. The press conference was attended by industry leaders, engineers, potential business partners, and members of the media.

Advancing Manufacturing: The Power of an Automatic Vacuum Forming Machine

As global demand for highly precise and customized plastic products continues to grow across automotive, packaging, healthcare, electronics, and more, manufacturers are faced with the challenge of staying nimble, efficient, and cost-effective. Overcoming production bottlenecks and keeping up with market expectations requires transformative equipment solutions—precisely what the newly launched automatic vacuum forming machine from Shanghai Zhanshi Mechanical Equipment Co., Ltd. offers.

With this new-generation machine, manufacturers will dramatically increase their throughput, virtually eliminate manual errors, reduce operating costs, and gain unparalleled control and flexibility.

Lewis emphasized:

“Our automatic vacuum forming machine is engineered to be the new benchmark for automated plastic forming technology. It is the product of years of innovation, customer feedback, and our relentless focus on efficiency and reliability. By integrating this machine into their production line, companies of all sizes can achieve previously unattainable efficiencies while producing impeccable, high-quality products at scale.”

What Makes an Automatic Vacuum Forming Machine So Impactful?

Lewis continued, “The impact of an automatic vacuum forming machine on production efficiency cannot be overstated. Unlike traditional, semi-manual approaches, this machine automates every key step—from sheet feeding and heating to forming, cooling, and trimming. This all-in-one solution boosts not only the speed but also the precision and consistency of your finished products.”

Here’s how the automatic vacuum forming machine achieves these results:

1. Fully Automated Workflow

Every step, from sheet loading to finished part ejection, is handled with robotic precision. This drastically reduces manual intervention and ensures that every output is identical in quality.

2. Intelligent Heating Systems

The machine boasts advanced multi-zone infrared heating, guaranteeing even material softening while minimizing energy use and scrap rates. With precise temperature zones, manufacturers can ensure the forming material never overheats or underperforms.

3. Rapid Forming and Cooling

By leveraging optimized vacuum channels and variable pressure technology, the machine achieves fast cycle times even with complex shapes, pushing productivity to new heights.

4. In-Line Trimming and Stacking

Directly after forming, the products are automatically trimmed and neatly stacked or conveyed, ready for packaging or further assembly. This seamless transition cuts minutes off every cycle, which translates to massive efficiency gains over the course of a production day.

5. Seamless Integration

Designed with the modern factory in mind, the automatic vacuum forming machine integrates upstream and downstream, connecting with supply conveyors, robotics, and data management systems. As a result, it fits perfectly into both Industry 4.0 and traditional production environments.

Key Features Exclusive to Shanghai Zhanshi’s Automatic Vacuum Forming Machine

The competitive landscape has never been more demanding, but Shanghai Zhanshi sets itself apart with a series of groundbreaking features:

  • User-Friendly HMI (Human-Machine Interface): Operators of all experience levels can control, monitor, and troubleshoot the system through an easy-to-navigate touch screen interface.
  • IoT Connectivity: The machine is equipped with real-time data collection and remote diagnostics, supporting predictive maintenance and performance optimization.
  • Energy Savings Mode: Smart sensors automatically adjust heating and vacuum systems based on current demand, reducing energy consumption without compromising efficiency.
  • Quick Mold Change System: Enables ultra-fast swapping of forming tools, empowering manufacturers to shift production with minimal downtime.
  • Multi-Material Compatibility: From PVC and PET to PP, ABS, and recycled blends, the machine delivers outstanding results with a wide array of plastic sheets.
  • Precision Control: Integrated sensors continually monitor material thickness, temperature, and vacuum timing, ensuring repeatability even with challenging designs.
  • Safety First: Industry-leading safety systems protect operators and minimize the risk of unplanned downtime.

Also Read: Key features of an automatic vacuum forming machine

Key Benefits for Your Business

By adopting an automatic vacuum forming machine from Shanghai Zhanshi, clients are empowered to:

  • Ramp up production with fewer operators.
  • Reduce maintenance and energy expenditure.
  • Adapt quickly to market changes and customer needs.
  • Ensure compliance with international quality and safety standards.
  • Seamlessly expand product offerings without additional capital investments in new lines.

Lewis added:

“We have engineered this solution for flexibility and future-readiness. No matter which sector our customers hail from, our automatic vacuum forming machine provides the speed, intelligence, and reliability demanded by global leaders.”

About Shanghai Zhanshi Mechanical Equipment Co., Ltd.

Shanghai Zhanshi Mechanical Equipment Co., Ltd. is a global pioneer in smart, high-efficiency manufacturing solutions for the plastics processing industry. With world-class R&D, robust after-sales service, and a relentless commitment to customer success, the company helps manufacturers around the world to reimagine productivity and quality in their production lines.

Media Contact:

Company Name: Shanghai Zhanshi Mechanical Equipment Co., Ltd.
Contact Name: Lewis
Contact Phone: +86 13916846091
Address: No.26 Kangyuan Road, Zhujiajiao Industrial Zone, Qingpu District, Shanghai, China
Email: Daisy@smktek.com
Website: https://www.vacuumac.com/

Load More
